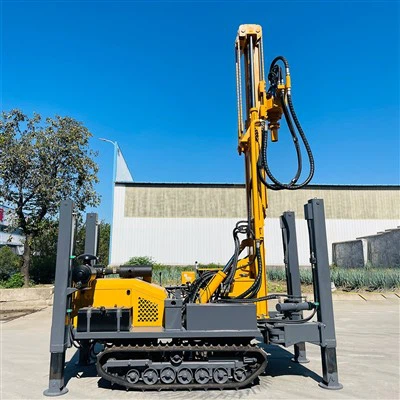

Well Digging Equipment For Sale 200m

Model number：YW-200
Drill depth: 200m
The hole diameter：140-254mm
Equipped capacitor:58kw
The engine brand:yuchai

Description

In the market of well digging equipment, our 200m well digging equipment for sale stands out as a reliable and efficient choice. Whether you are involved in agricultural irrigation, providing water for rural households, or conducting small - scale industrial water supply projects, this equipment can meet your needs.

Our 200m well digging equipment comes in various types, including truck - mounted and crawler - mounted models. The truck - mounted rigs are highly mobile, allowing for easy transportation on roads, which is especially convenient for projects in areas with good traffic conditions. For example, if you need to drill wells in a series of villages along a main road, the truck - mounted 200m well digging equipment can quickly move from one site to another. On the other hand, crawler - mounted models are designed for more complex terrains such as mountains and hilly areas. Their sturdy crawler systems enable them to traverse uneven ground, ensuring that drilling operations can be carried out smoothly even in difficult landscapes.

This equipment is equipped with powerful engines. Most models are powered by diesel engines with power ranging from 55kW to 76kW. Such power ensures high - efficiency drilling. It can achieve a drilling diameter of 140 - 254mm, suitable for different well - building requirements. The drilling method combines advanced technologies. For instance, it often uses mud - assisted drilling in soft soil layers to maintain the stability of the borehole wall. When encountering harder rock formations, pneumatic down - the - hole hammer drilling technology can be applied to break through the rock effectively.

The applications of our 200m well digging equipment are extensive. In the agricultural sector, it is an essential tool for digging deep irrigation wells. With a drilling depth of up to 200m, it can reach reliable groundwater sources, providing sufficient water for farmland, especially in arid regions. In rural areas, it helps to build domestic water wells, ensuring a stable water supply for villagers. Additionally, for small - scale industrial projects that require their own water sources, this equipment can be used to drill wells to meet production needs.

In conclusion, if you are looking for a high - quality 200m well digging equipment for sale, our products are your best bet. With their excellent performance, adaptability to different terrains, and wide range of applications, they are sure to contribute to the success of your water source exploration and well - building projects.

Weight(T)	4.7	Drill pipe diameter(mm)	76/89
Hole diameter(mm)	140-254	Drill pipe length(m)	1.5/2.0/3.0
Drill depth(m)	200	Rig lifting force (T)	13
One-time advance length(m)	3.3	Rapid rise speed(m/min)	30
Walking speed(km/h)	2.5	Fast feedilng speed(m/min)	60
Gradeability(Max.)	30	Width of loading(m)	2.6
Equipped capacitor(kw)	58	Hoisting force of winch(T)	1.5
Working air pressure(MPA)	1.7-2.5	Swing torque (N.m)	3400-4700
Air consumption(m'/min)	17-31	Dimensions(mm)	395017502250
Swing speed(rpm)	45-70	The penetration effciency(m/h)	10-35
High leg stroke(m)	1.4	The engine brand	yuchai
